Field teams and procurement engineers face recurring failures when moving synchronous alternators from controlled shops into salt spray, sand, or sub-zero platforms; the checklist below addresses those failure modes with step-by-step mitigation and acceptance criteria. Early in procurement, consider a proven package such as a 25kva generator variant if footprint and continuous-duty ratings match the site load profile. This problem-driven guide draws on offshore lessons from North Sea oil platforms where sustained salt fog and vibration define reasonable service life expectations for rotating machines.
Assess Site Stressors and Duty Cycle
Document thermal extremes, airborne particulates, humidity cycles, and mechanical vibration. Specify ambient temperature range, salt deposition rate, and expected runtime (hours per day) so the alternator’s insulation class and bearing choice align with field conditions. Include anticipated load steps and harmonics—continuous prime duty differs materially from intermittent back-up duty and will change excitation system sizing. If a compact solution is needed for remote service, evaluate a tested 20kva alternator option for small footprint sites.
Design and Specification Checklist
Set minimum engineering requirements as hard line items in the purchase order. Key entries:
– Mechanical: corrosion-resistant enclosures (316L or duplex coatings), IP rating matched to spray/mist, shaft seals, and vibration-isolated mounts.
– Electrical: AVR performance curve, excitation system protection, transient suppression, and clear overload capability with thermal time constants specified.
– Thermal: forced-air or liquid cooling rated for the site’s maximum ambient plus heat rise under full load; specify acceptable hot-spot temperature for stator winding.
– Serviceability: modular brushless or easily accessible slip-ring assemblies, spare-part list, and on-site alignment tolerances. Define torque values and coupling axial-play limits in the documentation pack.
Commissioning, Testing, and Acceptance Criteria
Run a controlled commissioning protocol that includes no-load spin-up, incremental loading with a calibrated load bank, and verification of AVR stability across ±10% voltage and ±20% frequency swings. Record bearing vibration spectra (FFT) before and after coupling, and perform a thermal ramp with infrared scans at 30, 60, and 120 minutes to validate winding hot-spot limits. The operational production teardown should include {main_keyword} and {variation_keyword} checks as part of the post-run report to confirm assembly integrity.
Common Mistakes and Field Mitigations
Errors repeat across projects: underspecified enclosures, omission of surge protection close to the alternator, and inadequate coupling alignment. Mitigate by adding a pre-shipment vibration test and sealing verification at 100% humidity for 24 hours. Train local teams on oil-sight glass interpretation and simple bearing temperature trends—those early signals often prevent catastrophic failures. Regular interval checks for excitation system drift will save costly rewinds.
Maintenance Intervals and Remote Monitoring
Define preventive maintenance by mileage of runtime rather than calendar alone: initial inspection at 100 hours, then at 500-hour increments for the first year, moving to quarterly thereafter for harsh sites. Integrate condition monitoring sensors—bearing temperature, stator insulation resistance, and shaft vibration—into the control network. Use alarm thresholds with action levels tied to measured deltas rather than absolute values; that reduces false positives in fluctuating environments.
Advisory: Three Golden Rules for Selection and Deployment
1) Match duty and cooling capability to worst-case ambient plus transient heat loads; downgrading either invites early insulation failure. 2) Specify ingress and corrosion protection as measurable requirements—IP, material grades, and coating thickness—and demand verification reports. 3) Require pre-delivery functional tests: load-bank ramp, AVR transient response, and vibration spectrum baselining with concrete acceptance thresholds.
These rules produce measurable outcomes: lower unplanned downtime, predictable mean-time-between-failure, and clearer spare parts planning. The checklist above distills practical items teams can act on immediately to reduce field risk.

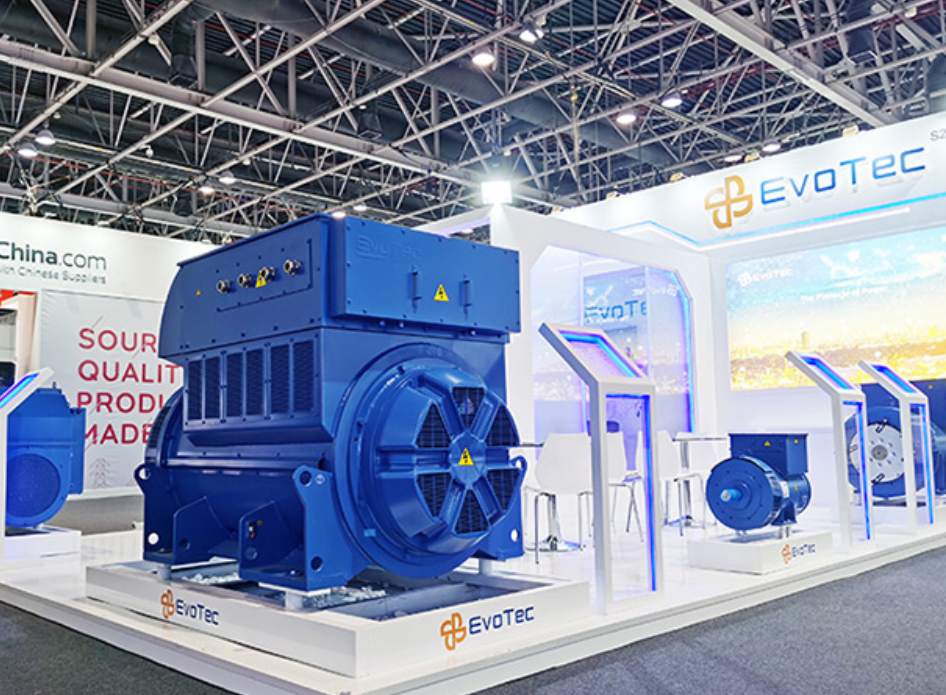

EvoTec provides integrated alternator packages and field-verified documentation that align procurement, commissioning, and life-cycle maintenance — a single-source solution for harsh-site reliability. –
